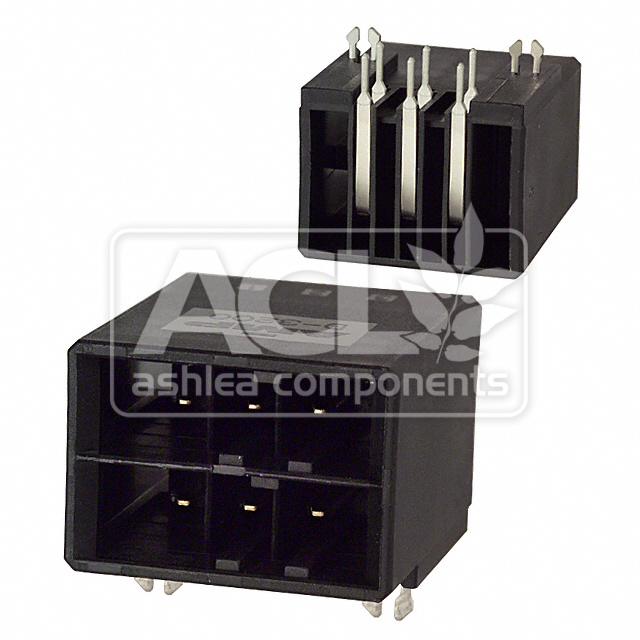

1-178139-3 – TE CONNECTIVITY
Connector Header, Right Angle, 6-Position, 5.08mm Pitch, Through Hole.
Stock Quantity: 600
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 4 |
| 10+ | |
| 50+ | |
| 100+ |
600 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The TE Connectivity 1-178139-3 is a 6-position, 2-row shrouded header designed for robust wire-to-board connections. Its 5.08 mm pitch and right-angle, through-hole mounting facilitate efficient PCB assembly and signal routing. A critical design consideration for this component is the trade-off between the gold contact plating, which ensures low contact resistance and excellent corrosion resistance for reliable signal integrity, and its cost implications in high-volume applications, necessitating careful BOM management.
Key Features
- 6 Positions, 2 Rows
- 5.08 mm (0.2 in) Pitch
- Right Angle Through-Hole Mounting
- Gold Contact Plating (Copper Alloy Contacts)
- Polyester Housing Material
- Operating Temperature Range: -55°C to +105°C
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Power distribution in industrial control systems
- Signal interconnects in automotive electronics
- Data acquisition module interfaces
- Low-voltage power supply connections
