09694020214 – HARTING

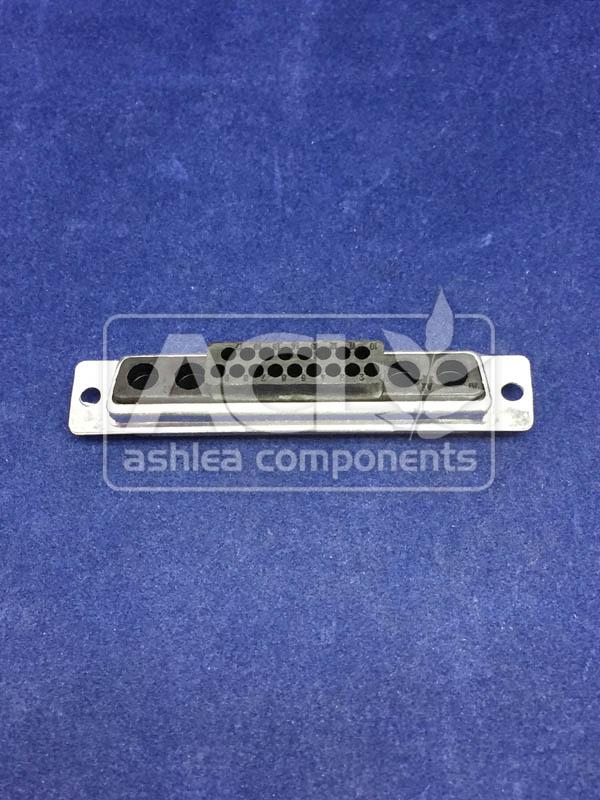

The HARTING 9694020214 is a female D-subminiature mixed layout connector conforming to industry standards for D-sub connectors. It features a 21WA4 contact arrangement, indicating a combination of signal and power or coaxial contacts within a standard D-sub shell size. This connector provides a robust and space-efficient solution for applications requiring diverse signal types. The female gender implies it is typically mounted on a cable or enclosure to mate with a male connector. The specific contact loading (WA4) dictates the exact mix of contact types and their current carrying capacity, which must be verified against the manufacturer’s datasheet to determine the allowable current and voltage ratings for each contact position. The connector’s construction materials and plating determine its durability, shielding effectiveness, and operating temperature range, all of which are critical parameters for proper application.
