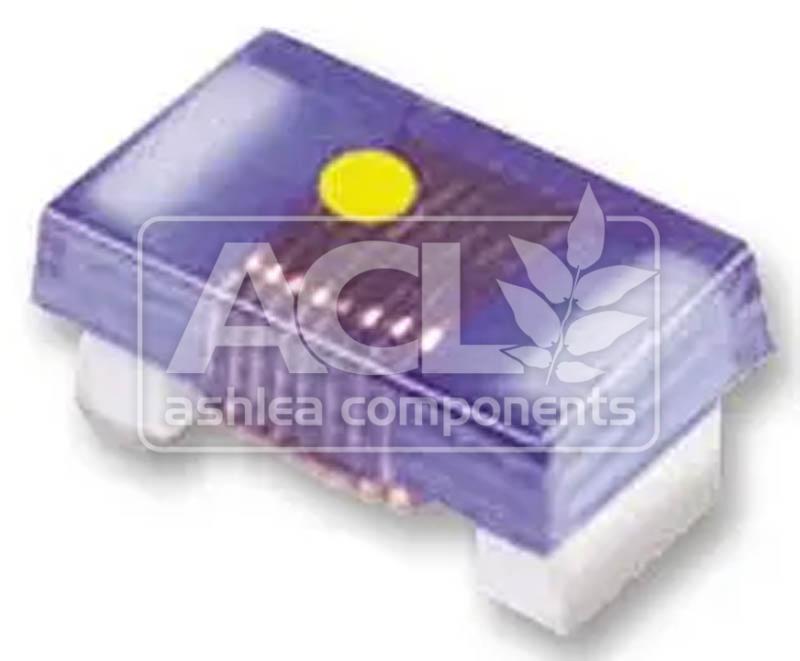

0603CS-10NXJLW – COILCRAFT

Part Number:

0603CS-10NXJLW

Manufacturer:

COILCRAFT

Date Code:

RoHS:

RoHS Compliant

MSL:

COO:

Description:

Wirewound Inductor, 10 nH, 0.13 Ohms, 4.8 GHz, 700 mA, 0603 [1608 Metric], 0603CS Series

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 0

GET QUOTE

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

The 0603CS-10NXJLW is a wirewound inductor manufactured by COILCRAFT. This component provides a 10 nH inductance value with a DC resistance of 0.13 Ohms. It exhibits a self-resonant frequency of 4.8 GHz and a current rating of 700 mA. The inductor is housed in a 0603 [1608 Metric] package, belonging to the 0603CS series.

Key Features

Inductance: 10 nH
DC Resistance: 0.13 Ohms
Self-Resonant Frequency: 4.8 GHz
Current Rating: 700 mA
Package: 0603 [1608 Metric]

Applications

This inductor is suitable for use in high-frequency circuits and impedance matching networks. Its small size and electrical characteristics make it appropriate for various electronic devices.

RF Filters
Matching Networks
Wireless Communication Devices
