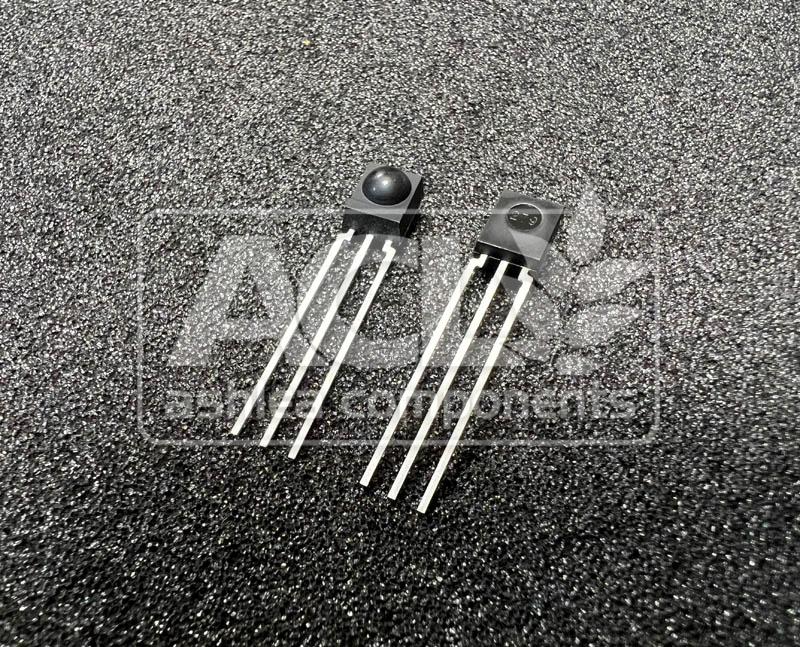

TSOP14336 – VISHAY
Part Number:
TSOP14336
Manufacturer:
Date Code:
unknown
RoHS:
RoHS Compliant
MSL:
1
COO:
PHILIPPINES
Description:
Vishay TSOP14336 IR Receiver, 36kHz, ±45°, 30m, 2.5-5.5V, Through-Hole, 6×5.6×6.95mm
Datasheet:
Spotted a problem with product information? – let us know
ORDER NOW
Stock Quantity: 122
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 1.66 |
| 10+ | |
| 50+ | |
| 100+ |
122 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Product Details:
Overview
The VISHAY TSOP14336 is a through-hole infrared receiver module designed for IR remote control systems. This receiver operates at a carrier frequency of 36kHz and exhibits an acceptance angle of ±45°. It is capable of receiving signals up to 30 meters and functions within a supply voltage range of 2.5V to 5.5V. The package dimensions are 6mm x 5.6mm x 6.95mm.
Key Features
- 36 kHz Carrier Frequency
- ±45° Acceptance Angle
- Up to 30m Range
- 2.5V to 5.5V Operating Voltage
Applications
This IR receiver is typically used in devices requiring remote control functionality. Its operating characteristics make it suitable for various consumer electronics and automation systems.
- Television Remote Control Systems
- Audio/Video Equipment
- Toy Control
- Lighting Control
